Low-voltage Switchgear
Low-voltage Switchgear is designed for safe switching, control, metering and protection in electrical distribution systems. Panel arrangement, rated current, fault withstand, protection relays, interlocks and environmental ratings are configured from the approved single-line diagram and technical specification.
|
RATED VOLTAGE |
RATED CURRENT / SHORT-CIRCUIT |
|
STANDARDS BASIS |
TYPICAL APPLICATION |
- Overview
- Recommended Products
General Product Overview：

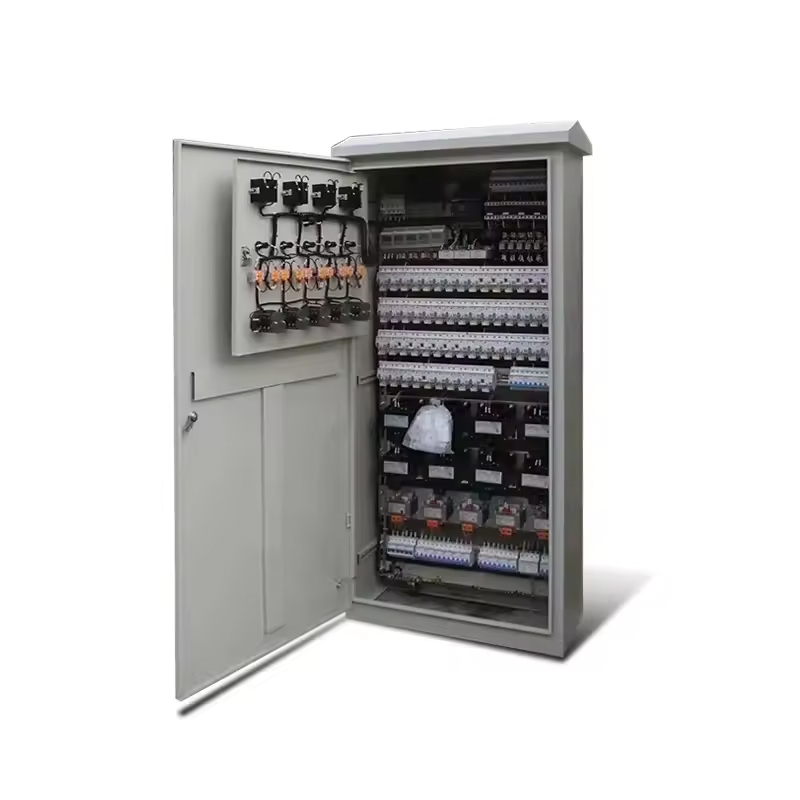

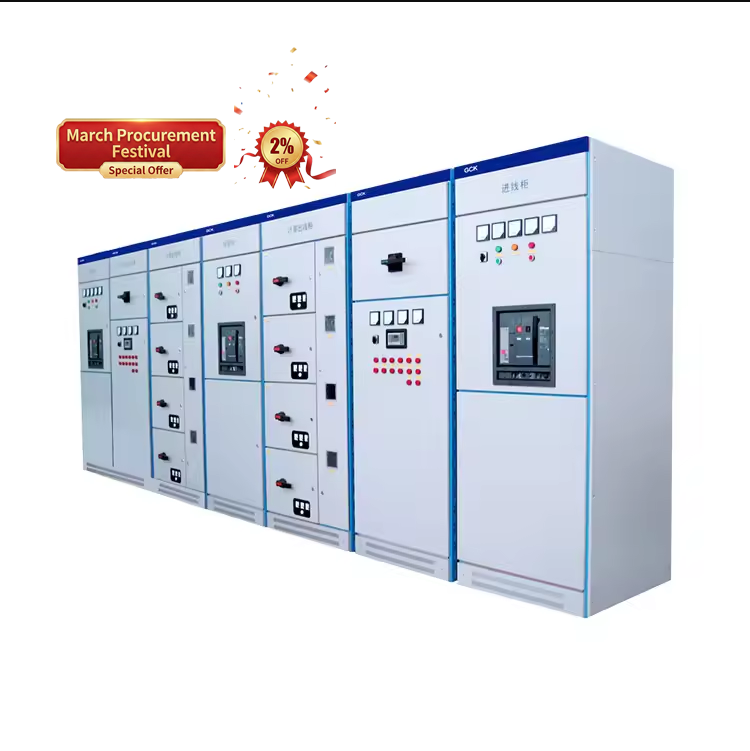

Our low-voltage switchgear is designed for efficient and reliable power distribution and control in tertiary networks. Available in both withdrawable (e.g., GCS, MNS) and fixed (e.g., GGD) configurations, these units provide flexible, safe, and modular solutions for building and industrial power hubs. Engineered for high current handling and excellent thermal performance, our LV switchgear ensures the smooth operation of motors, lighting, and power systems. Each cabinet is designed with internal compartmentalization to maximize personnel safety and minimize the spread of accidental faults.
Main Technical Specifications：
| Item | Specification |
|---|---|
| Rated Operating Voltage | 380V, 400V, 415V, 660V/690V |
| Rated Current | 100A to 6300A (Main Busbar) |
| Rated Short-time Withstand Current | Up to 100kA (1s) |
| Protection Level | IP30, IP40, IP42, IP54 (Customizable) |
| Internal Partitioning | Form 1 to Form 4 (According to IEC 61439) |
| Standards | IEC 61439-1/2, GB/T 7251.1/12 |
Verification: Factory Acceptance Test (FAT) reports and Type Test reports available upon order confirmation.
Core Features & Advantages：
✅High Safety Standard: Internal barriers protect operators from live parts and accidental arcs.
✅Excellent Thermal Design: Optimized ventilation paths for reliable operation under full load.
Main Applications：
✅Commercial Complexes & Hotels
✅Data Centers & Telecommunications
✅Residential Power Distribution
