Product Overview
The Barrier-Type Isolation Transformer is a high-safety power solution engineered by Apex Electrics. Based on Faraday’s Law of Electromagnetic Induction, it achieves voltage transformation through the turn ratio of primary and secondary coils (Vp/Vs = Np/Ns). By incorporating high-strength insulation barriers between windings, it provides complete galvanic isolation, effectively suppressing harmonics and transient surges to protect sensitive equipment.
Key Features
✅ Superior Galvanic Isolation: Physical barriers ensure zero electrical connection between input and output, enhancing personnel and equipment safety.
✅ Low Loss & High Efficiency : Utilizing high-permeability grain-oriented silicon steel, we minimize Eddy Current Loss and Hysteresis Loss.
✅ Advanced Insulation : Class F or H insulation materials with epoxy resin casting, providing excellent moisture and flame resistance.
✅ Noise Suppression: Integrated electrostatic shielding reduces common-mode noise, ideal for data centers and medical sites.
Technical Specifications
| Parameter | Specifications |
| Rated Capacity | 5kVA - 3150kVA (Customizable) |
| Input Voltage | 110V / 220V / 380V / 600V (Up to 35kV) |
| Output Voltage | 110V / 220V / 380V / 480V |
| Insulation Class | Class F (155°C) / Class H (180°C) |
| Cooling Method | AN (Natural Air) / AF (Forced Air) |
| Standard | IEC 60076, IEEE C57.12.01, GB/T 1094.11 |
Construction & Components
✅Core: High-quality silicon steel sheets with step-lap miter joints to reduce no-load loss.
✅Windings: Electrolytic copper or aluminum foil, ensuring optimal thermal stability.
✅Insulation Barrier: High-dielectric composite materials inserted between primary and secondary stages.
✅Smart Monitoring : Optional integration of Sensformer technology for real-time temperature and vibration tracking.
Typical Applications
✅Data Centers : Protecting high-density servers from grid interference.

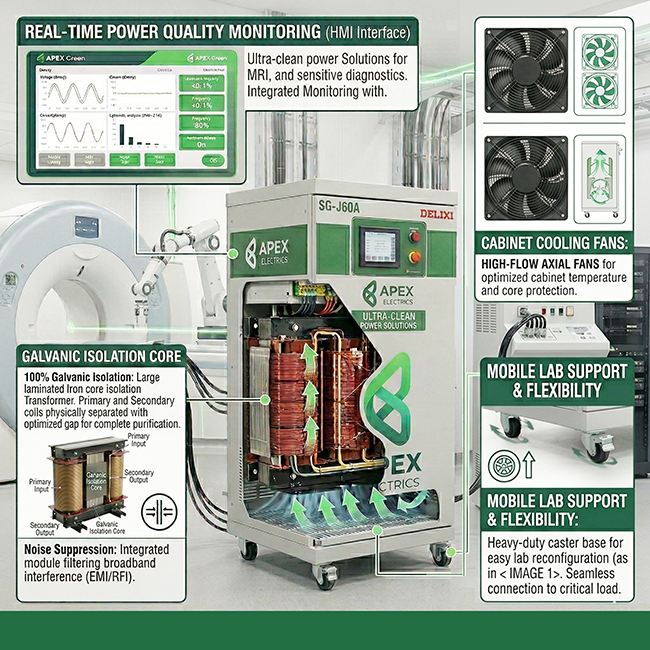

✅Medical Equipment : Reliable power for MRI, CT scanners, and operating rooms.
✅Renewable Energy: Isolation for PV inverters and wind power converters.
✅Industrial Automation: Powering precision CNC machines and PLC systems.
Expert Insights & O&M
As we move into 2026, the demand for Digital Twins in power systems is surging. We recommend equipping these transformers with infrared sensors for overheating detection. Our latest maintenance framework utilizes the ALBERT model to build a professional knowledge graph, enabling predictive maintenance and intelligent decision-making to minimize downtime.
