Containerized Substations
Containerized Substations integrates selected electrical equipment into a coordinated substation solution. Transformer, switchgear, protection and auxiliary systems are engineered around the project single-line diagram, environmental conditions and site-access requirements. The final equipment lineup and ratings are confirmed after design review.
|
RATED VOLTAGE |
RATED CAPACITY |
|
STANDARDS BASIS |
TYPICAL APPLICATION |
- Overview
- Recommended Products
General Product Overview：

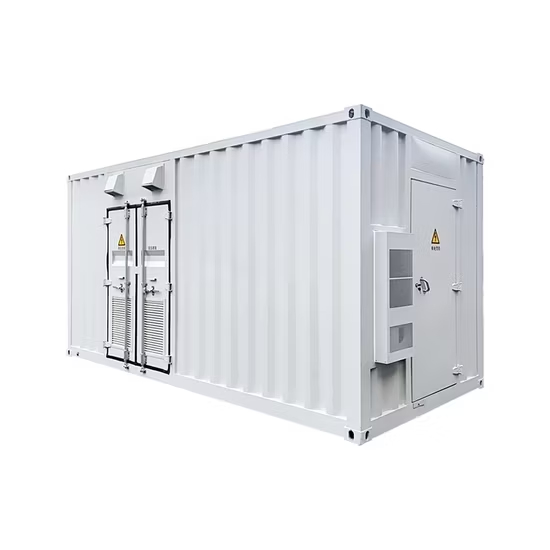

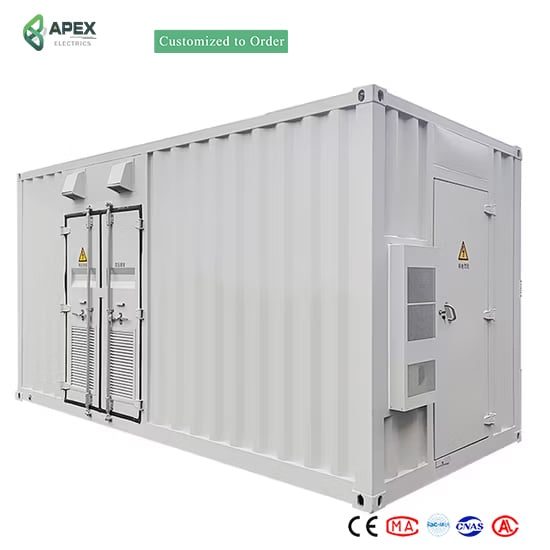

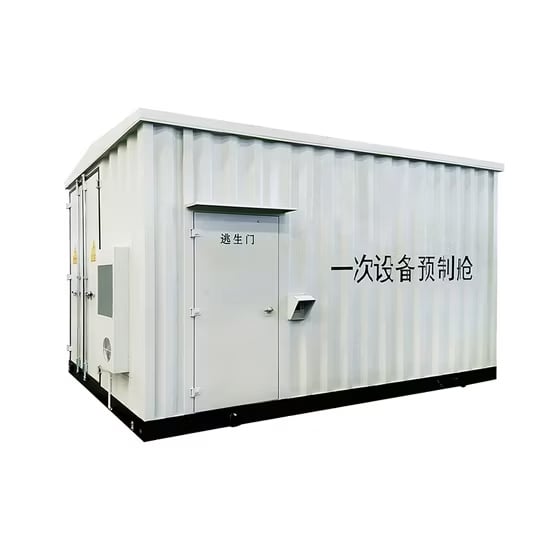

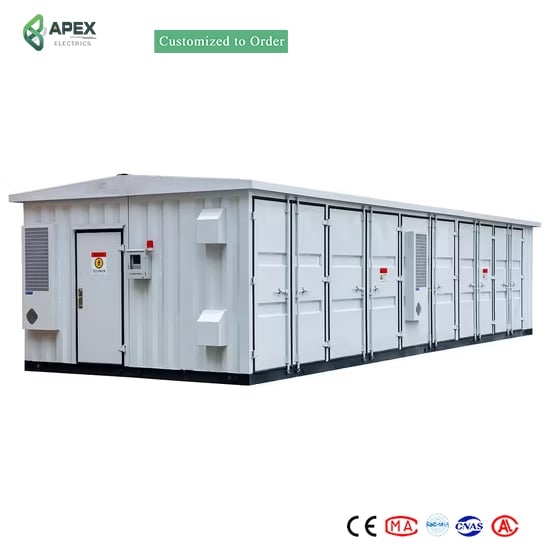

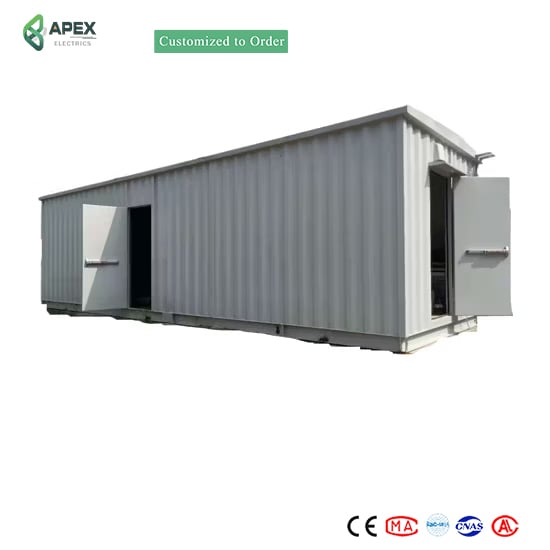

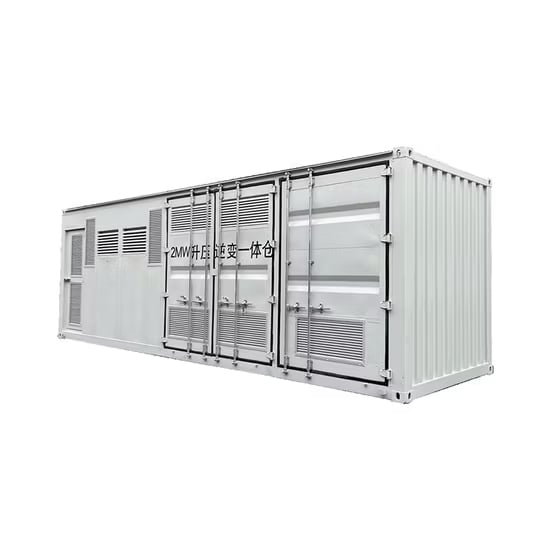

Our containerized (prefabricated) substations are engineered for the most demanding industrial and remote power projects. Utilizing standard shipping container dimensions or custom heavy-duty prefabricated cabins, these substations provide an "instant" power infrastructure solution. They are designed to withstand extreme temperatures, mechanical vibrations, and harsh industrial environments. Each unit comes fully equipped with internal lighting, HVAC systems, and fire suppression, offering a self-contained environment for critical electrical equipment.
Main Technical Specifications：
| Item | Specification |
|---|---|
| Primary Voltage | Up to 35kV (Optional 66kV/110kV mobile units) |
| Capacity Range | 630kVA - 5000kVA+ (Multiple units can be coupled) |
| Cabinet Type | Heavy-duty Steel or Thermal-insulated Prefabricated Panels |
| Protection Level | IP55, IP65 |
| Environmental Tolerance | -50°C to +55°C |
| Features | Integrated HVAC, SCADA remote monitoring, and Auto-extinguishing |
Core Advantages：
✅Extreme Mobility: Easily transported via standard logistics for rapid relocation.
✅Total Protection: Fireproof, dustproof, and weather-sealed for harsh mining and industrial sites.
✅Plug-and-Play: Significant reduction in on-site construction and engineering time.
Main Applications：
✅Large-scale Mining Operations
✅Industrial Power Hubs
✅Wind & Solar Power Substations
✅Remote Substation Upgrades
✅ Engineering Support: Download typical CAD (.dwg) and PDF outline drawings for your project design.
